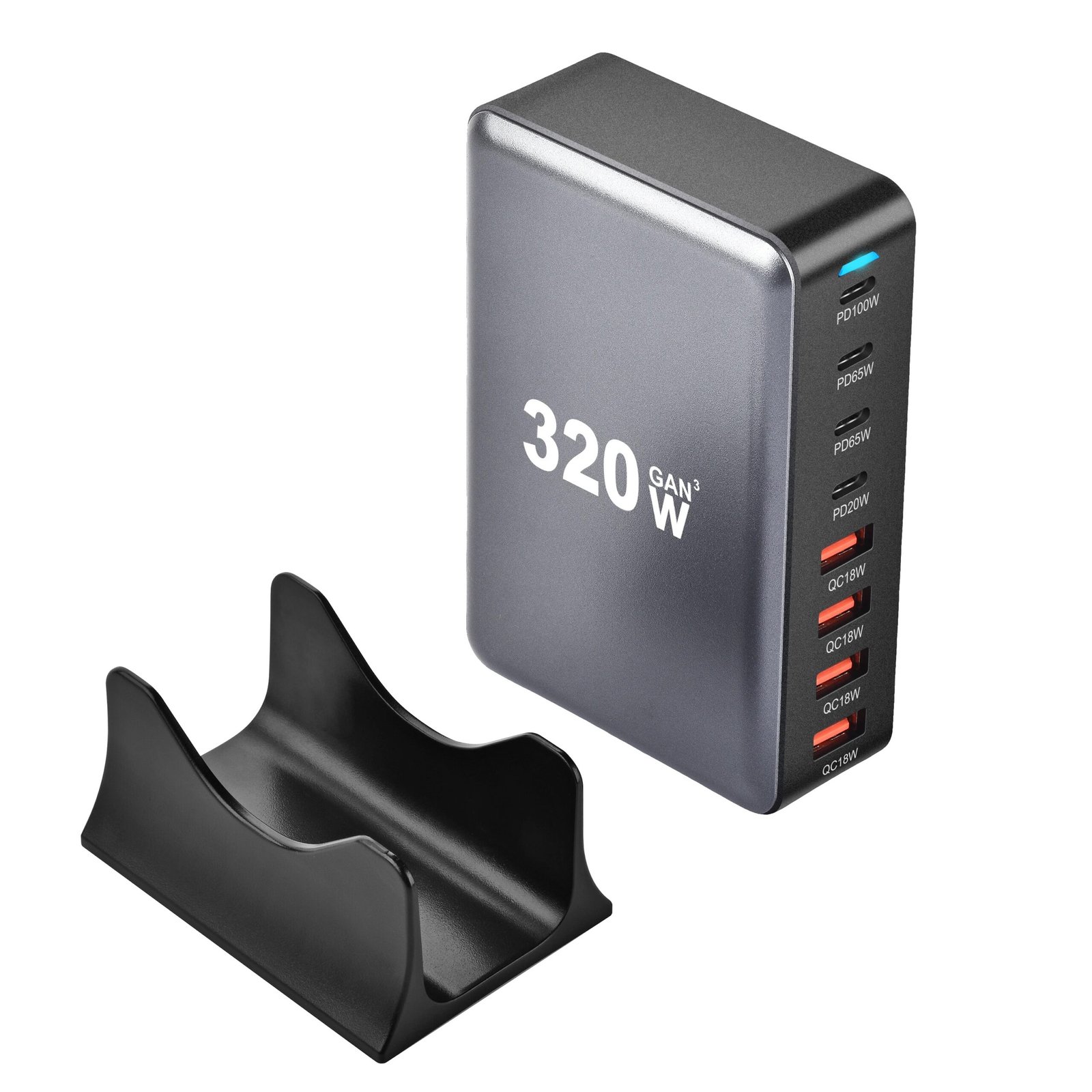

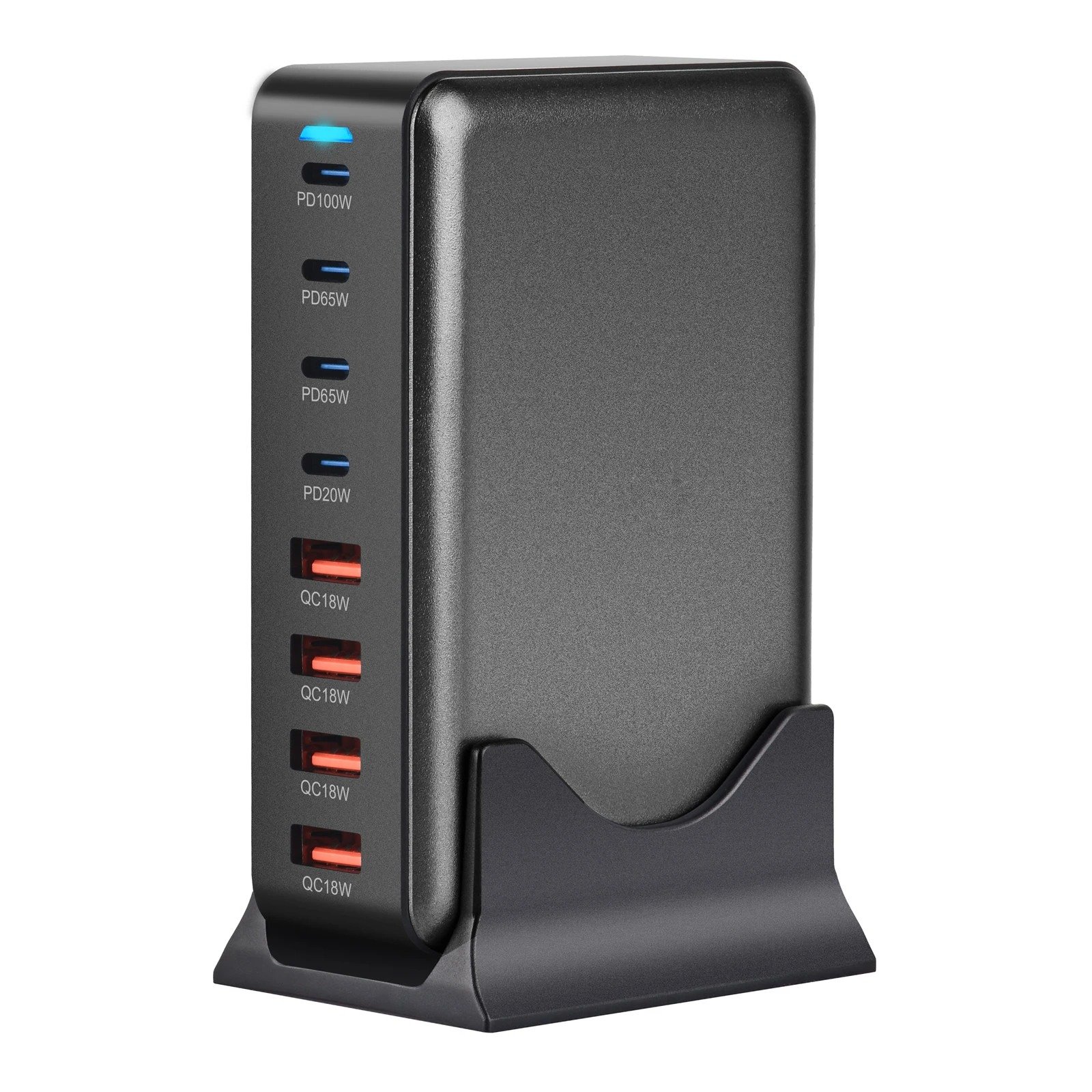

320W GaN 8-Port Fast Charger – Fast Charging for All Devices

Specifications

• Brand: Deepartner
• Type: Desktop Charger
• Technology: GaN (Gallium Nitride)
• Fast Charge Protocol: USB PD
• Max Output Power: 100W
• Output Interface: USB & Type-C
• High-Concerned Chemicals: None
• Certification: RoHS, UL, EMC
• Origin: Mainland China

Description

• Model: 4C4A
• Input: AC 100–240V, 50/60Hz, 1.8A (Max)

USB-C Output Details

• USB-C1:
  • 5V=3A / 9V=3A / 12V=3A / 15V=3A / 20V=5A
  • Max Output: 100W
• USB-C2:
  • 5V=3A / 9V=3A / 12V=3A / 15V=3A / 20V=3.25A
  • Max Output: 65W
• USB-C3:
  • 5V=3A / 9V=3A / 12V=3A / 15V=3A / 20V=3.25A
  • Max Output: 65W
• USB-C4:
• • 5V=3A / 9V=2.22A / 12V=1.67A
  • Max Output: 20W

USB-A Output Details (A1 / A2 / A3 / A4)

• 5V=3A / 9V=2A / 12V=1.5A
• Max Output: 18W (Each)

Combined Multi-Port Output

• USB-C1 + USB-C2 / USB-C3:
  • 65W + 30W = 95W Max
• USB-C1 + USB-C2 + USB-C3 + USB-C4:
  • 65W + 30W + 30W + 20W = 145W Max
• USB-C1 + USB-A1/A2/A3/A4:
  • 100W + 18W = 118W Max
• USB-C2 / USB-C3 + USB-C4:
  • 65W + 20W = 85W Max
• USB-C4 + USB-A Ports:
  • Total = 15W Max
• All Ports Combined:
  • 65W + 30W + 30W + 15W ≈ 140W Max
